                    The Mighty 50 Ton







                    - We've Moved -



                    Our New Location is located at 1840 Alstep Drive, Unit 3, Mississauga, ON, L5S 1W1





                    Perf-O-Mators





                    Perf-O-Mator Catalogue
                    https://0901.nccdn.net/4_2/000/000/001/2da/pg1.bmp
                    https://0901.nccdn.net/4_2/000/000/001/2da/pg1.bmp
                    https://0901.nccdn.net/4_2/000/000/03f/ac7/pg0-4952x4552.png
                    https://0901.nccdn.net/4_2/000/000/03f/ac7/pg0-4952x4552.png
                    https://0901.nccdn.net/4_2/000/000/083/84e/BW-Promo-4272x5512.jpg
                    https://0901.nccdn.net/4_2/000/000/083/84e/BW-Promo-4272x5512.jpg
                    https://0901.nccdn.net/4_2/000/000/04b/787/pg3.bmp
                    https://0901.nccdn.net/4_2/000/000/04b/787/pg3.bmp
                    https://0901.nccdn.net/4_2/000/000/008/486/pg4.png
                    https://0901.nccdn.net/4_2/000/000/008/486/pg4.png
                    https://0901.nccdn.net/4_2/000/000/06c/bba/pg2-4952x5160.png
                    https://0901.nccdn.net/4_2/000/000/06c/bba/pg2-4952x5160.png
                    https://0901.nccdn.net/4_2/000/000/017/e75/pg5-4952x3352.png
                    https://0901.nccdn.net/4_2/000/000/017/e75/pg5-4952x3352.png
                    https://0901.nccdn.net/4_2/000/000/020/0be/pg7-4776x6456.jpg
                    https://0901.nccdn.net/4_2/000/000/020/0be/pg7-4776x6456.jpg
                    https://0901.nccdn.net/4_2/000/000/001/2da/pg1.bmp
                    https://0901.nccdn.net/4_2/000/000/03f/ac7/pg0-4952x4552.png
                    https://0901.nccdn.net/4_2/000/000/083/84e/BW-Promo-4272x5512.jpg
                    https://0901.nccdn.net/4_2/000/000/04b/787/pg3.bmp
                    https://0901.nccdn.net/4_2/000/000/008/486/pg4.png
                    https://0901.nccdn.net/4_2/000/000/06c/bba/pg2-4952x5160.png
                    https://0901.nccdn.net/4_2/000/000/017/e75/pg5-4952x3352.png
                    https://0901.nccdn.net/4_2/000/000/020/0be/pg7-4776x6456.jpg

                    Perf-O-Mator Catalogue.pdf 3.0MB

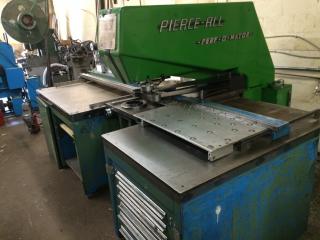

                    The Mighty 50 Ton

                    • External link opens in new tab or windowFull 50 ton pressure throughout entire stroke
                    • Power and capacity required for larger work
                    • Hit rate of 90 hits per minute
                    • Duplicator capacity up to 30 x 54 inch
                    • Hydraulic power for smooth economical running
                    • Hydraulic clamping



                    Specifications

                    Tonnage                                  50

                    Max. Material Thickness         3/8inch. (9.5mm) Max.

                    Hole Size                                 5inch. (127mm)

                    Strokes Per Minute                  125

                    Throat Depth                           30inch. (760mm)

                    Side Gauge                             72inch. (1892mm)

                    Clamping (sheet)                     Hydraulic

                    Duplicating Capacity         30 x 54inch. (760x1372mm)


                    Micro Gauging                         Standard

                    Table Area                               120 x 55inch. (3050 x 1397mm)


                    Back Gauge Lock                    Hydraulic

                    Tool Cabinet                            Optional


                    Images





                    The Standard 30 Ton

                    • Full 30 ton pressure throughout entire stroke

                    • Power and capacity required for larger work

                    • Hit rate of 90 hits per minute

                    • Duplicator capacity up to 30 x 54 in

                    • Hydraulic power for smooth economical running

                    • Hydraulic clamping


                    Specifications

                    Tonnage                                  30

                    Max. Material Thickness         3/8inch. (9.5mm)

                    Max. Hole Size                        5inch. (127mm)

                    Strokes Per Minute                  125

                    Throat Depth                           30inch. (760mm)

                    Side Gauge                             72inch. (1892mm)

                    Clamping (sheet)                     Hydraulic

                    Duplicating Capacity         30 x 54inch. (760x1372mm)


                    Micro Gauging                        Standard

                    Table Area                              120 x 55inch. (3050 x 1397mm)



                    Back Gauge Lock                   Hydraulic

                    Tool Cabinet                           Optional



                    Images





                    Pierce-All 12 Station Turret

                    This semi-automatic turret is driven electrically and is fitted with a pre-selection system, eliminating the necessity of changing tools during production, thus giving a high productivity rate


                    Specification

                    Tonnage

                    Turret

                    Max. Material Thickness

                    Maximum Hole Size

                    Strokes per Minute

                    Throat Depth

                    Side Gauge

                    Clamping (sheet)

                    Back Gauge Lock

                    Duplicating Capacity

                    30

                    12 St.

                    1/4 in. (6mm)

                    3 1/2 in. (89mm)

                    160

                    30 in. (760mm)

                    72 in. (1892mm)

                    Hydraulic

                    Hydraulic

                    30 x 54 in. (760 x 372mm)



                    Images
                    https://0901.nccdn.net/4_2/000/000/01e/76f/30tonturret-1c-3320x2480.jpg
                    https://0901.nccdn.net/4_2/000/000/038/2d3/30tonturret-2c-3676x2528.jpg
                    https://0901.nccdn.net/4_2/000/000/046/6ea/30tonturret-3-4184x2896.jpg

                    1

                    2

                    3

                    https://0901.nccdn.net/4_2/000/000/01e/76f/30tonturret-1c-3320x2480.jpg
                    https://0901.nccdn.net/4_2/000/000/038/2d3/30tonturret-2c-3676x2528.jpg
                    https://0901.nccdn.net/4_2/000/000/046/6ea/30tonturret-3-4184x2896.jpg





                    CNC Pierce-All

                    CNC Pierce-All

                    The CNC Pierce-All does all the tasks of a standard punching machine, while automating the process


                    Video of a CNC Retro fit in action

                    IMG_1179.MOV 81.9MB





                    Multi-Purpose Tool Storage Cabinet

                    Available from Pierce-All is the ideal cabinet for safe, convenient storage of punches and dies and other valuable tooling and accessories.  The drawers glide easily on a heavy-duty suspension ball bearing system. The drawers open fully without sagging, for easy access to all stored items. One standard size suspension system fits all drawers to provide maximum flexibility. Drawer capacity is 400 pounds. The large sturdy drawer pull is supplied with labels and protective vinyl shields to provide easy identification of drawer contents. Each cabinet comes complete with Safeguard locking device for complete security and a variety of drawer accessories that include 23 partitions, 115 dividers, 5 groove trays and 140 label holders.

                    Specifications


                    Cabinet Dimensions            Inches

                    Height                                        26”

                    Width                                         30”

                    Depth                                       27 ¾”

                    Drawer Dimensions

                    Area                                25 1/8” x 25 1/8”

                    Useable draw heights

                       2                                             @ 3”

                       2                                             @ 4”

                       1                                             @ 8”







                    Used Machines



                    We also sell used machines

                    Check out our used machines page to see what machines we have in stock
