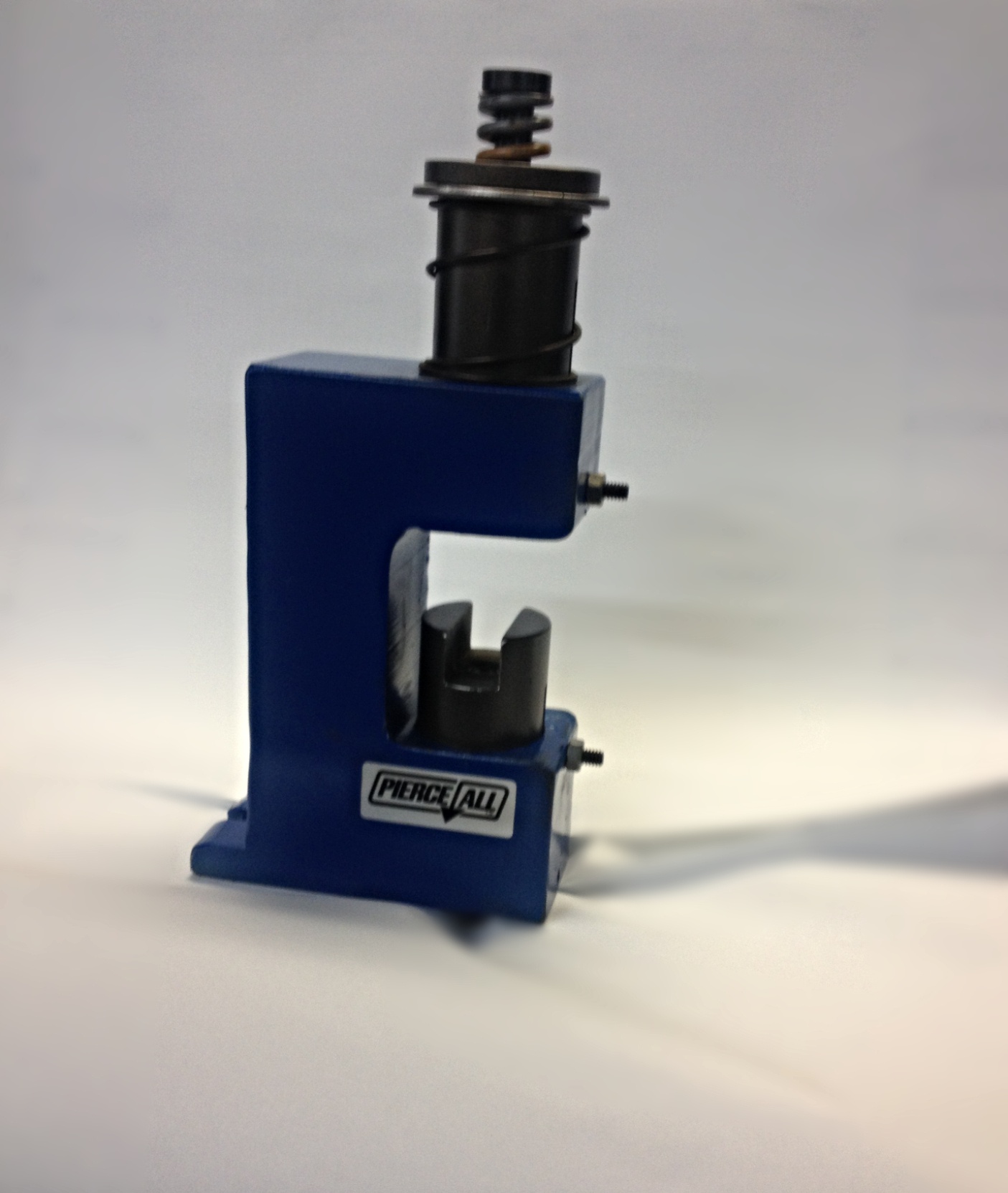

Tube Pierce
- Steel holder
Punches either one or two opposing holes
Round or shaped holes
Unit for any Tube size will accommodate any round or shaped punch
For different tubing size it's only necessary to change the upper and lower guides
Punches can be used for all tubing sizes within unit range
- Tubing - 3/4'' to 1 1/4'' O.D*
Punch size - up to 1/2'' diameter
Shut height - 7''
Holder height - 1 3/4''
Length of base - 4 1/4''
Locating - By pilot pin
*Other tube sizes to order
We also have a variety of Tube Pierces that can accommodate a wide variety of different tube sizes as well as hole sizes and shapes
And a fixture can be made to accommodate products with multiply hole
Please contact us for further information or any inquires
| |
